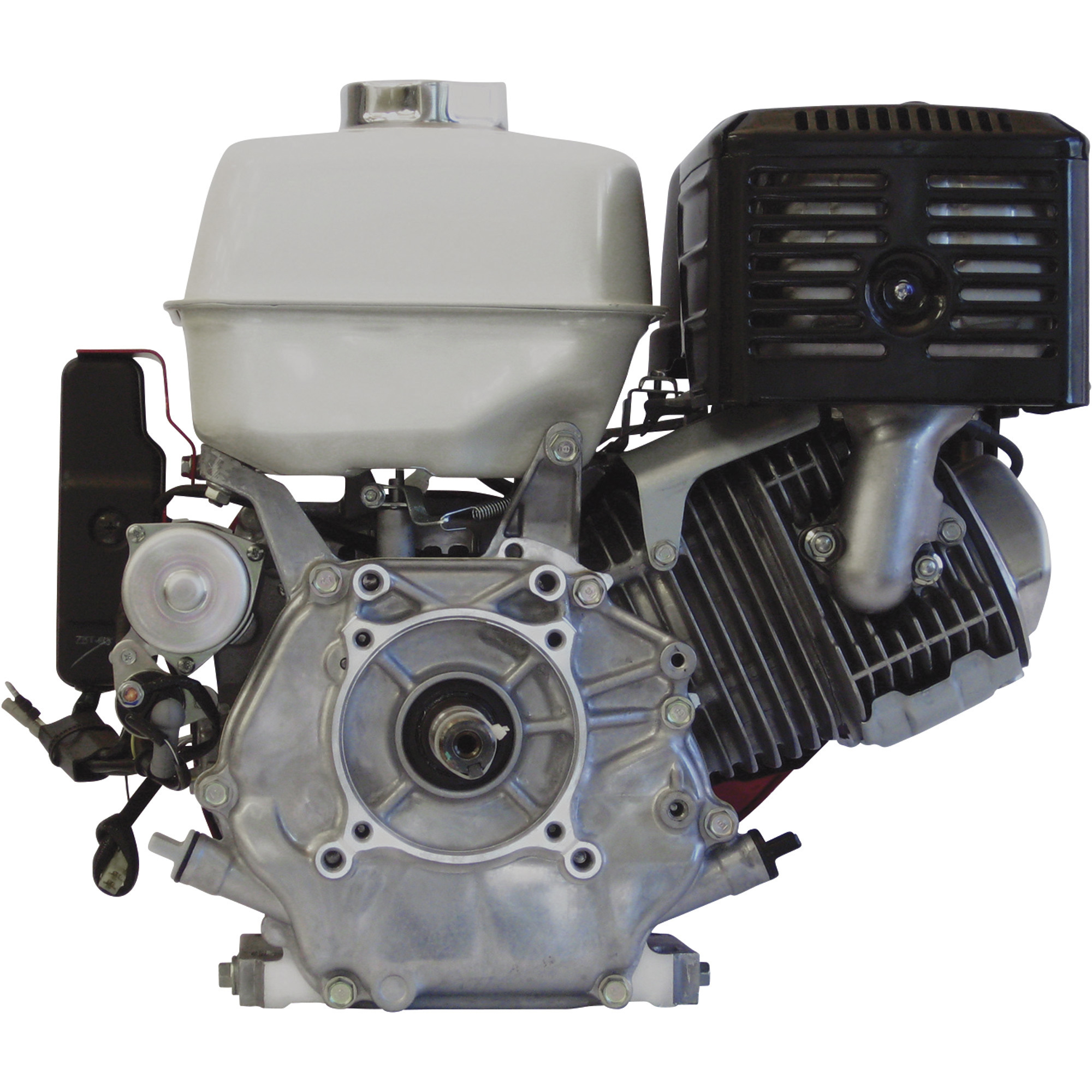

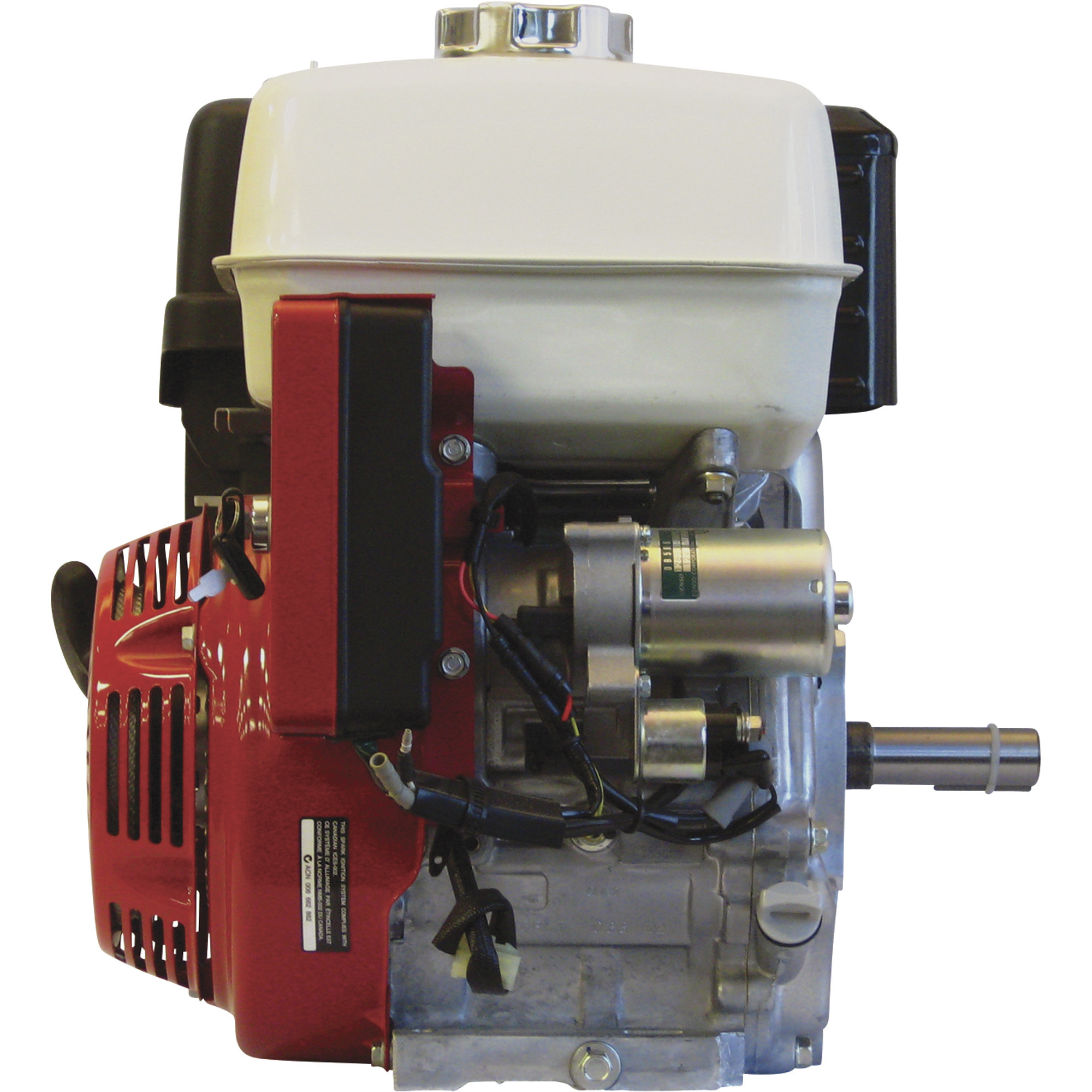

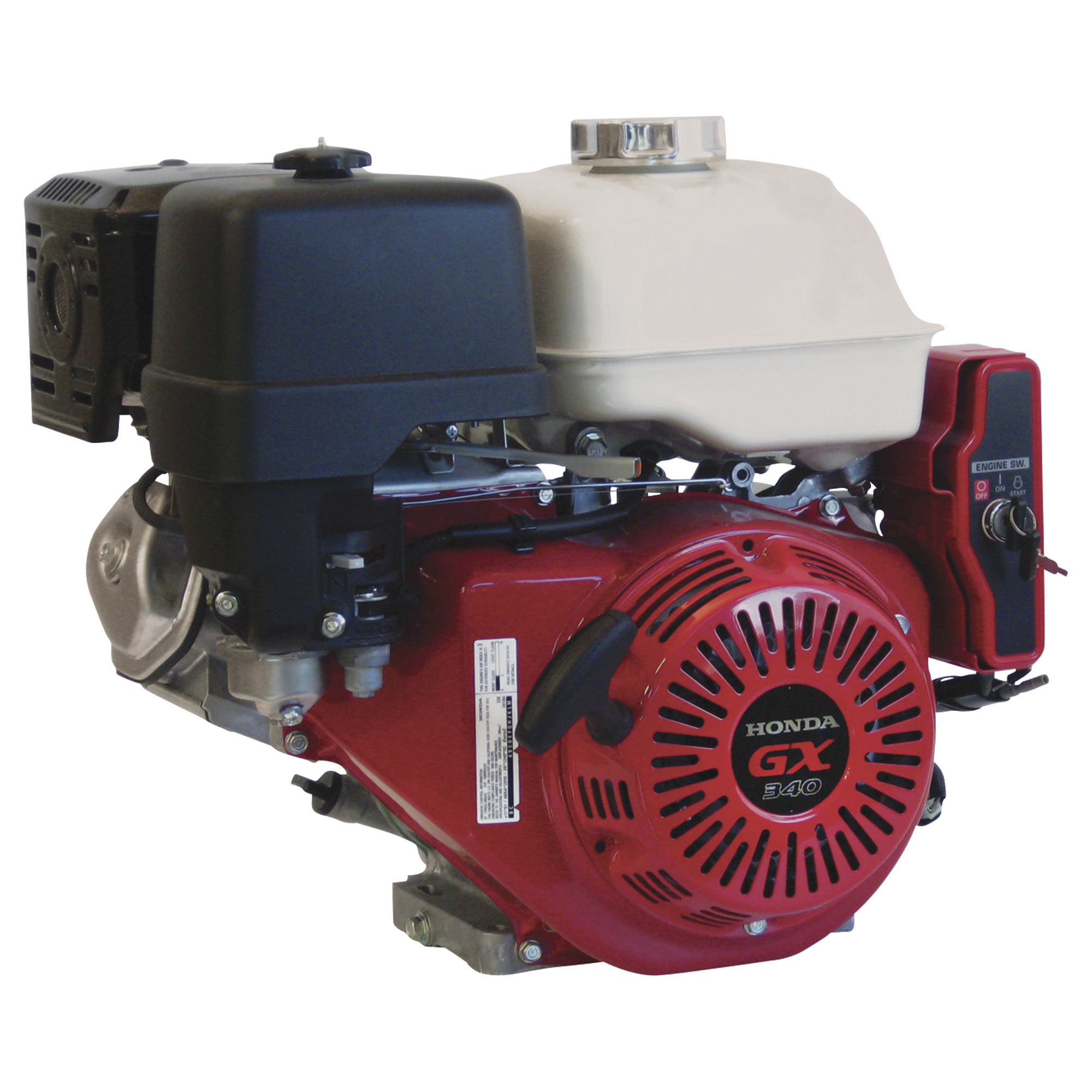

  • Honda Engines, HONDA 340CC OHV ELEC START, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX340UT2QNE2

Honda Engines, HONDA 340CC OHV ELEC START, Engine Displacement 389 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX340UT2QNE2

185.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share

          30-Day Return Policy

          Not loving it? We offer returns for most items within 30 days of delivery for a refund or store credit.

          Description

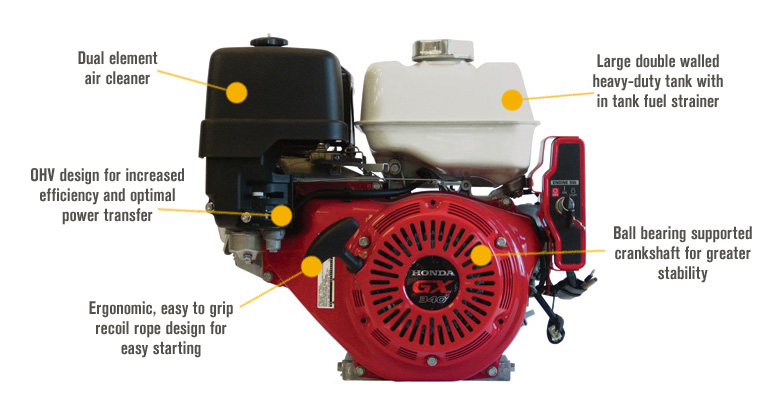

          • Model GX340UT2QNE2; Honda 389cc, 10.7 HP air-cooled, 4-stroke engine with 1in. dia. x 3 31/64in.L horizontal shaft
          • OHV overhead valve design
          • Electronic ignition with electric start with key switch/recoil backup featuring automatic decompression for easy starting; 10 Amp charge
          • Flange mount bolt circle 6 1/2in.
          • Mounting base dim. 7.7in.L x 3.39in.-4.06in. W (approx.)
          • Cast iron sleeve provides durability
          • Ideal for use with pressure washers, compressors, go-karts, log splitters and chipper/shredders
          • Key switch;  Oil Alert®
          • Heavy-duty ball bearing supported crankshaft
          • Double walled heavy-duty tank with in-tank fuel strainer
          • Battery cables not included
          • Not for sale in CA
          Attribute Specification

          item#

          		 60109

          Brand

          		 Honda Engines

          Manufacture's Warranty

          		 3 year limited warranty

          Ship Weight

          		 88.3 LB

          Engine Displacement

          		 389 cc

          Engine Type

          		 GX Series OHV Commercial-duty

          Shaft Diameter

          		 1 in

          Shaft Length

          		 3.48 in

          Start Type

          		 Electric and Recoil

          Shaft Keyway

          		 0.25 in

          Net Torque

          		 19.5 ft-lbs.

          Crankshaft

          		 Q-type

          PTO Height

          		 5.25 in

          Cylinders (qty.)

          		 1

          Cylinder Bore

          		 Cast Iron

          Net Power Output

          		 10.7 HP

          Compression Ratio

          		 8.2:1

          Fuel Tank

          		 Yes

          Fuel Tank Capacity

          		 6.4 qt

          Attribute Specification

          Oil Capacity

          		 1.16 qt

          Low Oil Shutdown

          		 Yes

          Low Oil Alert

          		 Yes

          Shaft Rotation (From PTO Shaft Side)

          		 Counter Clockwise

          Governor System

          		 Centrifugal Mechanical

          Ignition System

          		 Electronic

          Carburetor

          		 Float, External Vent

          Lubrication System

          		 Splash

          Auto Compression Release

          		 Yes

          Cooling System

          		 Air

          Bore

          		 3.2 in

          Stroke

          		 2.5 in

          Air Cleaner Type

          		 Dual Element

          Choke Control

          		 Manual

          Throttle Control

          		 Manual

          Fuel Filter

          		 Yes

          Charging System Amps

          		 10

          Muffler Included

          		 Yes
