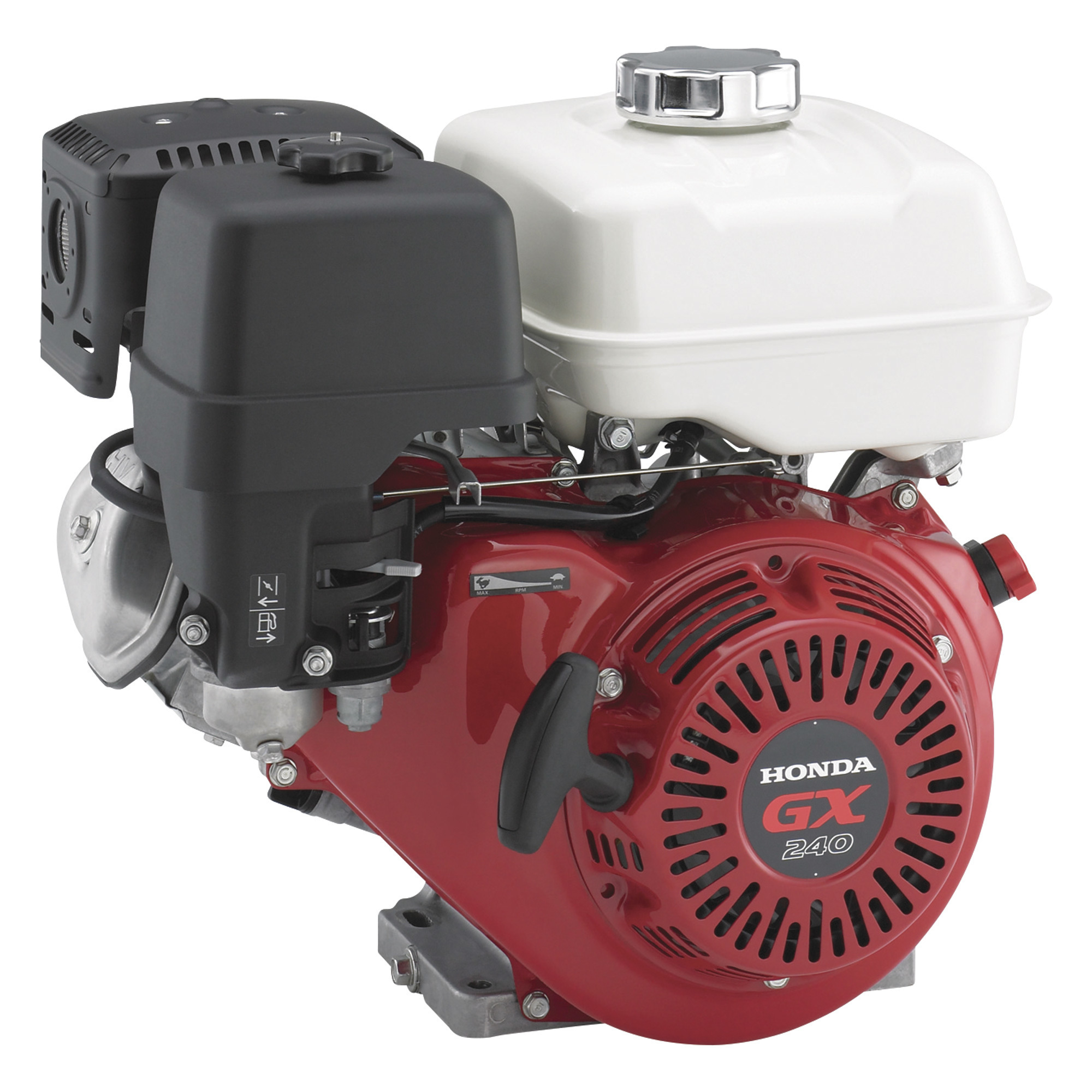

Honda Engines, HONDA 270CC OHV ENGINE, Engine Displacement 270 cc, Engine Type GX Series OHV Commercial-duty, Shaft Diameter 1 in, Model# GX240U1QA2

185.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share

          30-Day Return Policy

          Not loving it? We offer returns for most items within 30 days of delivery for a refund or store credit.

          Description

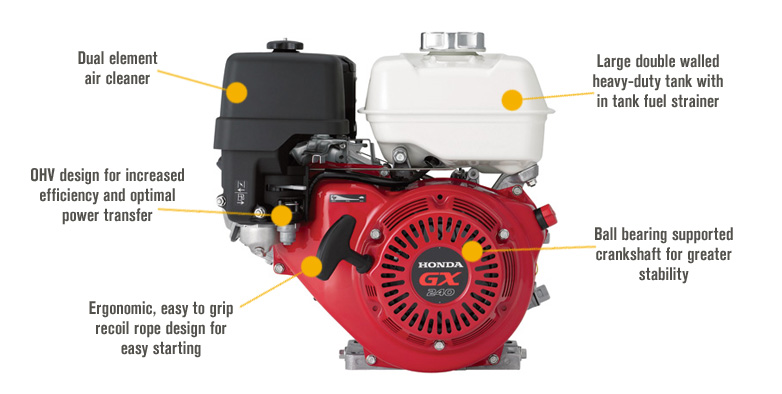

          • Honda 270cc GX 240 OHV air-cooled, 4-stroke, horizontal engine
          • Precision camshaft design for precise valve timing, optimal valve overlap and better fuel economy
          • OHV design for increased efficiency and optimal power transfer
          • High compression ratio for better fuel efficiency
          • Low vibration from precision-engineered components
          • Ball bearing-supported crankshaft for greater stability
          • Large capacity, multi-chamber exhaust system for a low noise level
          • Sophisticated air intake system
          • Oil Alert for extra engine protection
          • Carburetor filter and chamber coating help protect against fuel impurities
          • Cast iron cylinder sleeve
          • Dual element air filter
          • Simple throttle control
          • Double walled heavy-duty 5.6-qt. tank with in-tank fuel strainer
          • Large automotive-style fuel cap for easy filling
          • Dual oil fills and drains for quick oil changes
          • Easily accessible spark plug
          • Ergonomic recoil design for easy starts
          • Automatic decompression for easy starting
          • Not for sale in CA
          Attribute Specification

          item#

          		 6086

          Brand

          		 Honda Engines

          Manufacture's Warranty

          		 3 year limited warranty

          Ship Weight

          		 64.0 LB

          Engine Displacement

          		 270 cc

          Engine Type

          		 GX Series OHV Commercial-duty

          Shaft Diameter

          		 1 in

          Shaft Length

          		 3.48 in

          Start Type

          		 Recoil

          Shaft Keyway

          		 0.25 in

          Net Torque

          		 13.5 ft-lbs.

          Crankshaft

          		 Q-type

          PTO Height

          		 5.25 in

          Cylinders (qty.)

          		 1

          Cylinder Bore

          		 Cast Iron

          Net Power Output

          		 7.9 HP

          Compression Ratio

          		 8.5:1

          Fuel Tank

          		 Yes

          Attribute Specification

          Fuel Tank Capacity

          		 5.6 qt

          Oil Capacity

          		 1.16 qt

          Low Oil Shutdown

          		 Yes

          Low Oil Alert

          		 Yes

          Shaft Rotation (From PTO Shaft Side)

          		 Counter Clockwise

          Governor System

          		 Centrifugal Mechanical

          Ignition System

          		 Electronic

          Carburetor

          		 Float, External Vent

          Lubrication System

          		 Splash

          Auto Compression Release

          		 Yes

          Cooling System

          		 Air

          Bore

          		 2.9 in

          Stroke

          		 2.3 in

          Air Cleaner Type

          		 Dual Element

          Choke Control

          		 Manual

          Throttle Control

          		 Remote

          Fuel Filter

          		 Yes

          Muffler Included

          		 Yes
